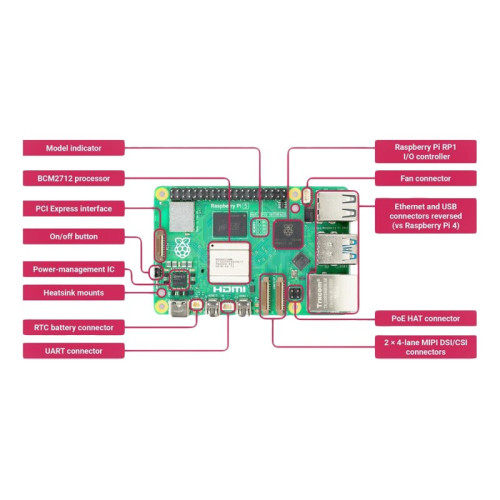

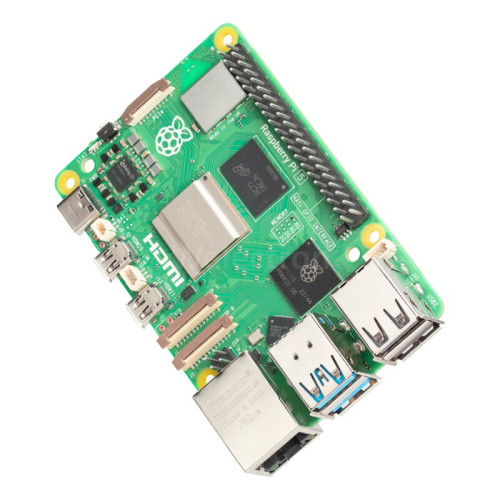

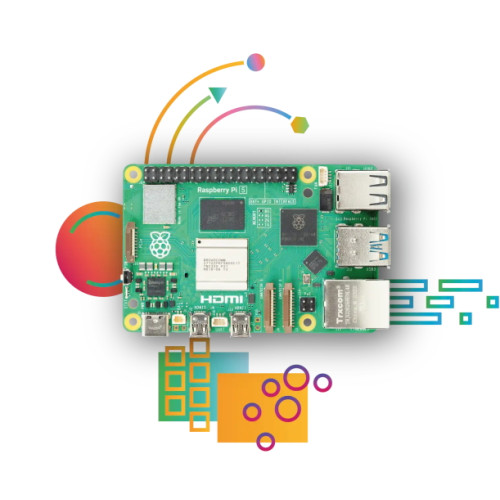

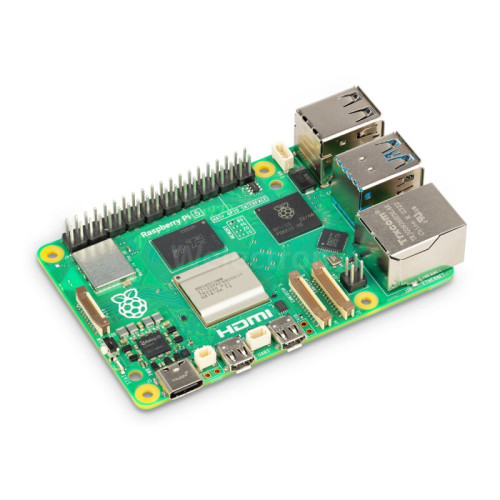

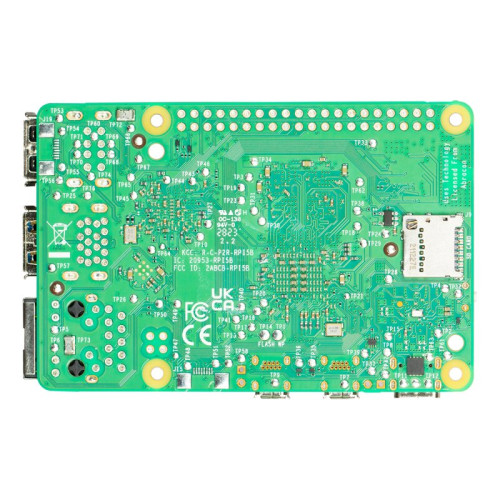

Single-board computer, 4x2.4 GHz, 8 GB RAM, 1x PCIe 2.0 x1, 2x USB 2.0, 2x USB 3.0, 40-pin GPIO, 2x MIPI (CSI/DSI), Gigabit LAN, WLAN, Bluetooth 5.0

Specifications:

  • Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
  • VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
  • Dual 4Kp60 HDMI® display output with HDR support
  • 4Kp60 HEVC decoder
  • LPDDR4X-4267 SDRAM (2GB, 4GB, 8GB, and 16GB)
  • Dual-band 802.11ac Wi-Fi®
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • microSD card slot, with support for high-speed SDR104 mode
  • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
  • 2 × USB 2.0 ports
  • Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
  • 2 × 4-lane MIPI camera/display transceivers
  • PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
  • 5V/5A DC power via USB-C, with Power Delivery support
  • Raspberry Pi standard 40-pin header
  • Real-time clock (RTC), powered from external battery
  • Power button

See https://www.raspberrypi.com/products/raspberry-pi-5/ for up to date information.

Write a review

Please login or register to review

Raspberry Pi 5 8Gb

  • 72.85€
